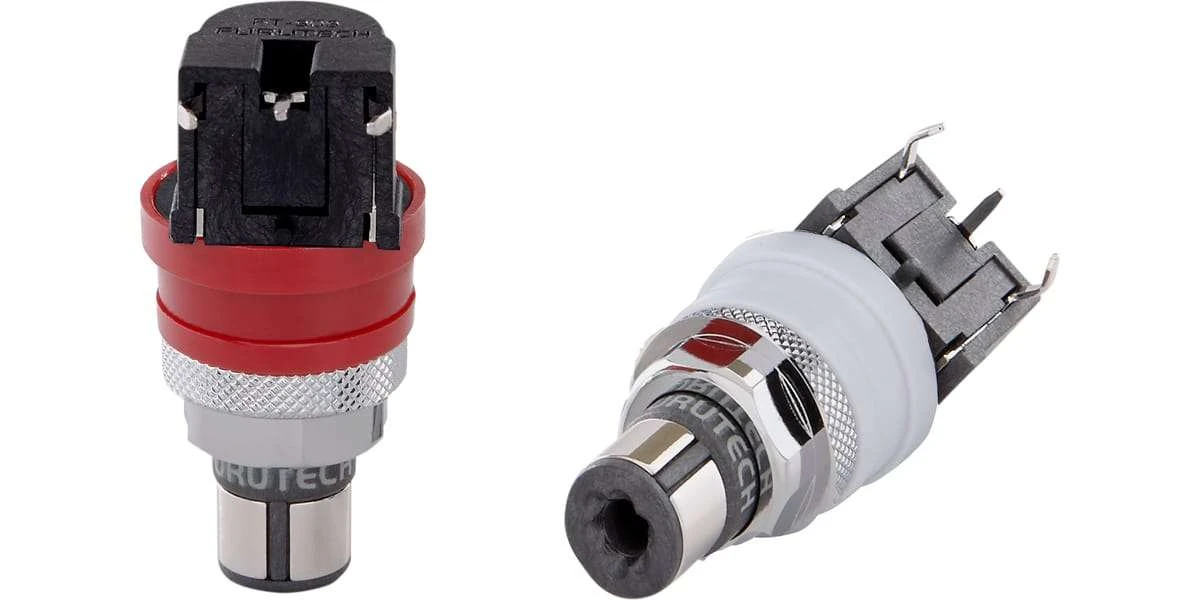

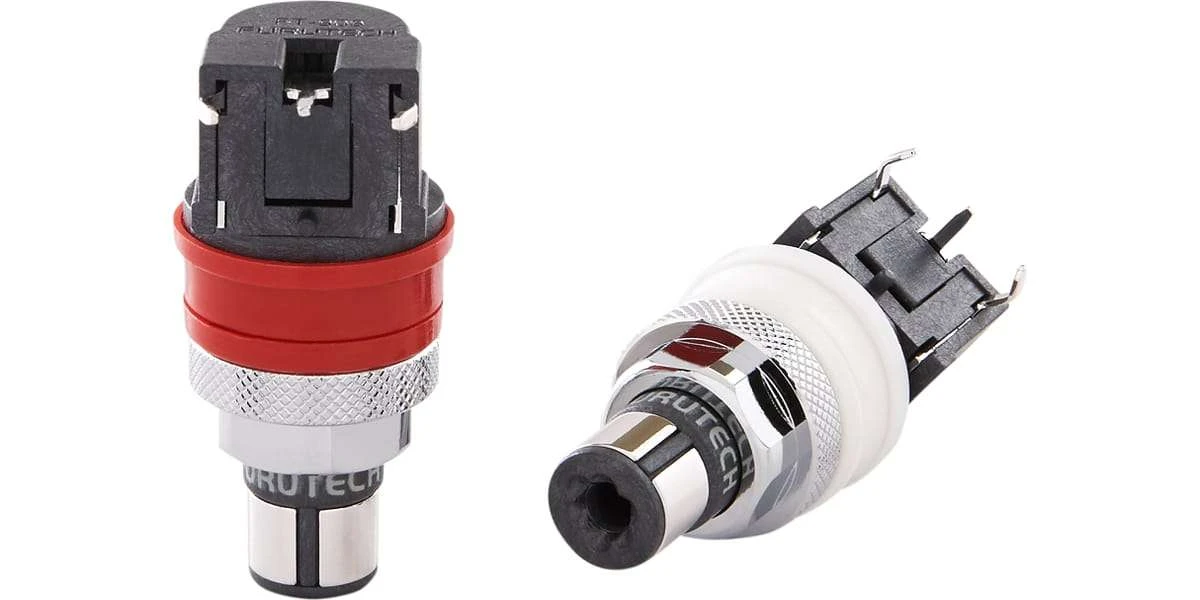

Furutech Ft-909 (r) 2pcs

FT-909 (R) / (G)
High End Performance RCA sockets for PCB

RATING

FT-909 (R) with rhodium plating upon request.

FEATURES

Main conductor: 24k gold-plated α (Alpha) Pure copper conductor
Insulation Body: Liquid Crystal Polymer Resin
Central Color Insulation and Color ring: Nylon resin (red/white)
Chassis nut: Plated Lead Free Copper alloy
Connections: Soldered

Specified for PCB

SPECIFICATIONS

Specified for core diameters up to 4.5mm
Dimensions: 20.9 × 17.35 × 36.5mm(L) overall length approx.
