Furutech Fp-3ts20 – Au Mètre

FP-3TS20

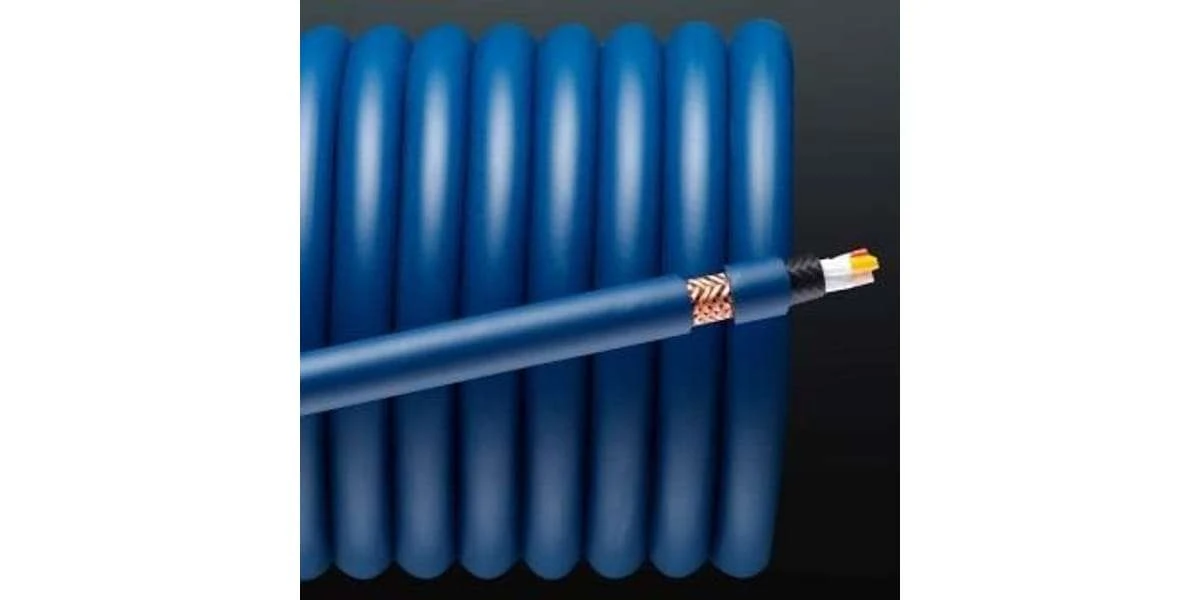

POWER SUPPLY CABLE (50M/Reel)

-Power cord termination with Furutech FP 209 spades-

RATING

2 Type stranding

14AWG α (Alpha) conductor(2.16 Sq.mm)

FEATURES

α (Alpha)-OCC Conductor : The PCOCC wire strands and treated with the α(Alpha) process

SPECIFICATIONS

– Conductor: α (Alpha)-OCC Conductor(56/0.18mm (central) + 29/0.18mm (outside) (14 AWG) / (2.16 sq.mm)
– Insulation: PE(Red?Natural?Yellow) Red=Live?Yellow=Neutral?Clear=Earth.
– Twisting: 3 Cores Twisted Together
– Shield: 0.12mm α (Alpha) Conductor wire Braid
– Sheath: Flexible PVC (Dark Blue)
– Max. Conductor Resistance: 0.008ω/ M
– Overall Diameter: 14.3mm (14 AWG)
