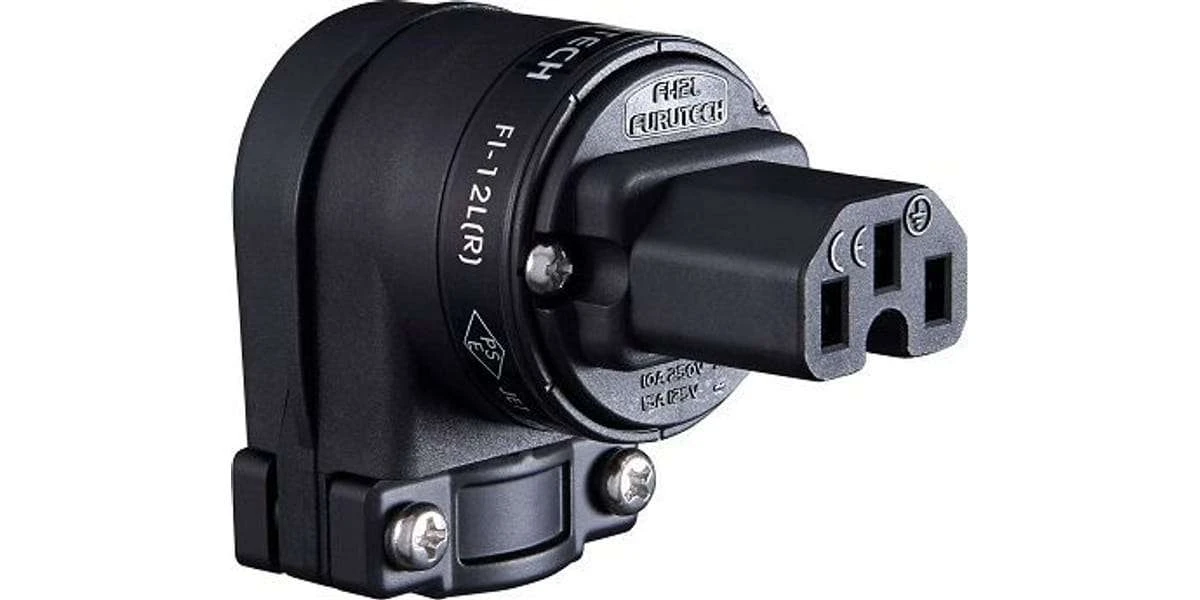

Furutech Fi-12l (g)

FI-12L(R) & FI-12L(G)
High End Performance Angled Connector Series

RATING

FI-12L(R)—10A 250V /15A 125V AC

FEATURES

From Furutech in 2015 the world’s first high-end grade angled power connectors. All versions with adjustable angle settings and featuring Furutech’s top rhodium-plated α (Alpha) pure-copper conductors.

SPECIFICATIONS

• Rhodium-plated or Gold-plated α (Alpha) Phosphor Bronze conductors
• Floating Field Damper System (US Patent No.: 6,669,491)
• Nylon/fiberglass body incorporating carbon particles that absorb vibration and resonance
• Specified for cable diameters from 6.6mm to 18.0mm
• Dimensions: Housing-44.0mm X 42.2mm X 55.0mm
FI-12L(R) — 70.6mm Overall Length X 42.2mm X 55.0mm Approx.
• Metal cable clamp improves grip and reduces mechanically and electrically induced distortion
